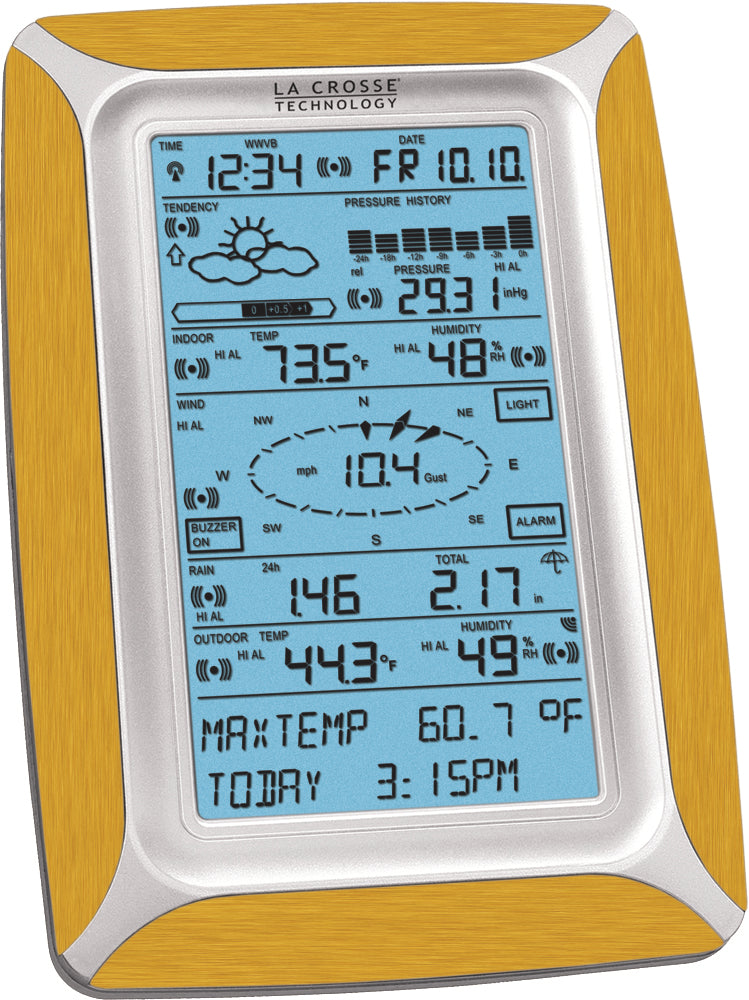

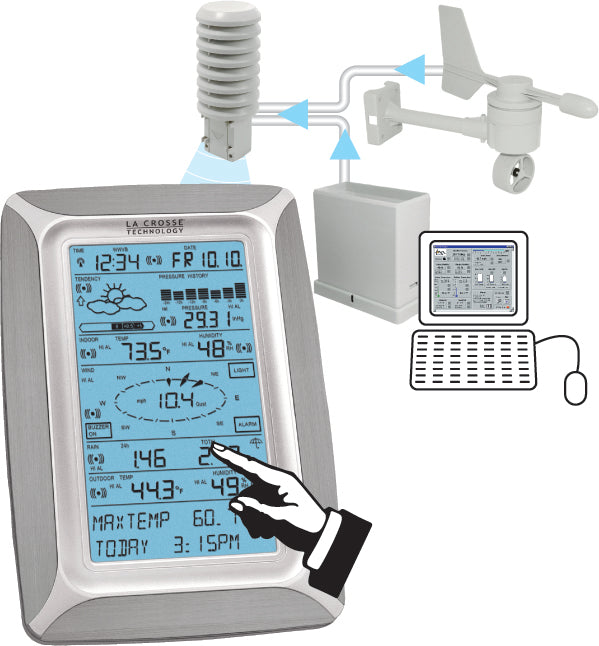

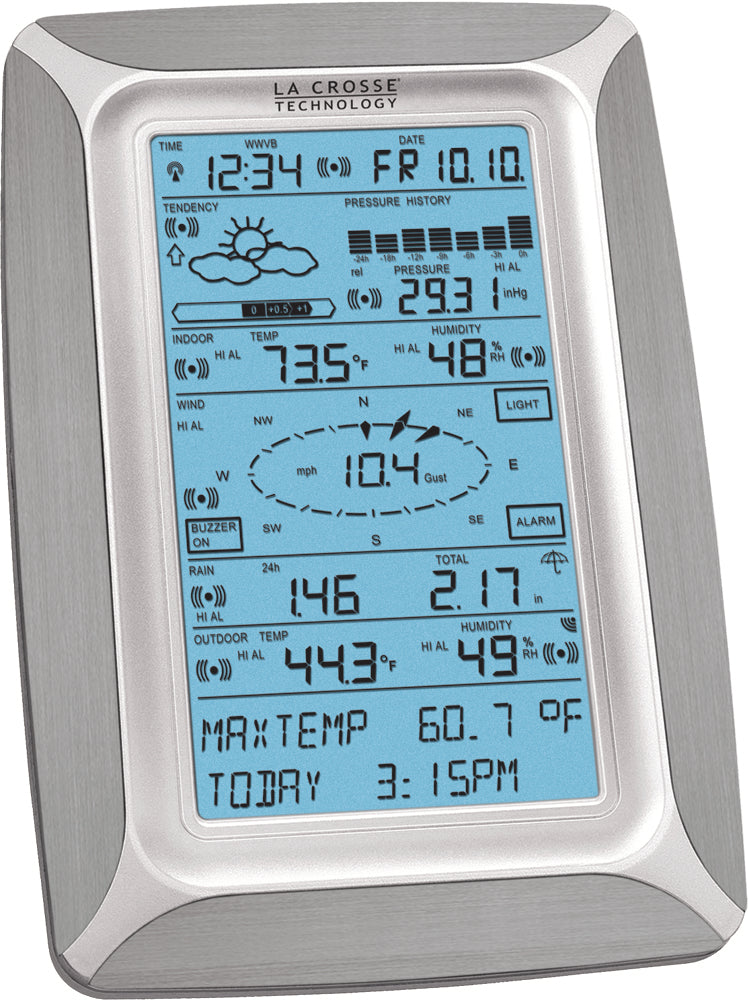

WS-3610U Complete Personal Weather Center

SKU: WS-3610U-AL


WS-3610U Complete Personal Weather Center

Series Model Numbers:

  • WS-3610U-AL

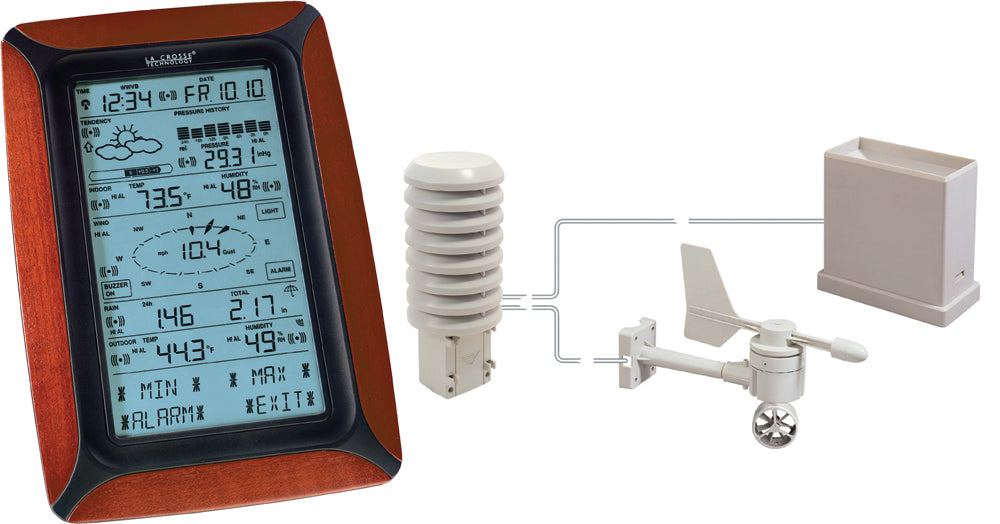

  • WS-3610U-CH
  • WS-3610-SAL

Already own this product?

Browse the tabs below for compatible parts, manuals or support.


  • Large LCD Touch Screen Display Activates with Slightest Touch
  • Records 1750 Sets of Weather Data Hisotry with "Heavy Weather PRO" PC Software and an Option to Upload the Data to your Website (Serial Connection only; Will not support USB adapter.)
  • Upload Weather Data to Your PC with Easy COM Port Connection
  • Weather forecasting function with 3 weather icons and weather tendency indicator
  • Wireless outdoor temperature (°F or °C)
  • Wireless outdoor humidity (%RH)
  • Monitors indoor temperature (°F or °C)
  • Monitors indoor humidity (%RH)
  • Records MIN/MAX temperature with time and date of recording
  • Records MIN/MAX humidity with time and date of recording
  • Barometric tendency arrow
  • Barometric pressure with 72 hour history graph (in inHg or hPa)
  • Dew point (°F or °C)
  • Records MIN/MAX dew point with time and date or recording
  • Wind Direction with LCD Compass (numerical (e.g. 225°) or abbreviated characters (e.g. SW))
  • Wind speed (mph, km/h, or m/s, and Beaufort Scale)
  • Records MIN/MAX wind speed with time and date of recording
  • Wind chill (°F or °C)
  • Records MIN/MAX wind chill with time and date of recording
  • Records Max wind speed with time and date of recording
  • Rainfall Data (inches or millimeters) in 1-hour & 24-hours
  • Records MAX Rainfall with time and date of recording
  • Multiple weather alarms
  • Atomic time and date with manual setting
  • Automatically updates for Daylight Saving Time (on/off option)
  • 12/24 hour time display
  • Perpetual calendar
  • Time zone setting
  • Time alarm
  • EL backlight
  • Wall hanging or free standing




  • Indoor Temperature Range: 14.2°F to 139.8°F
  • Indoor Humidity Range: 10% to 99%

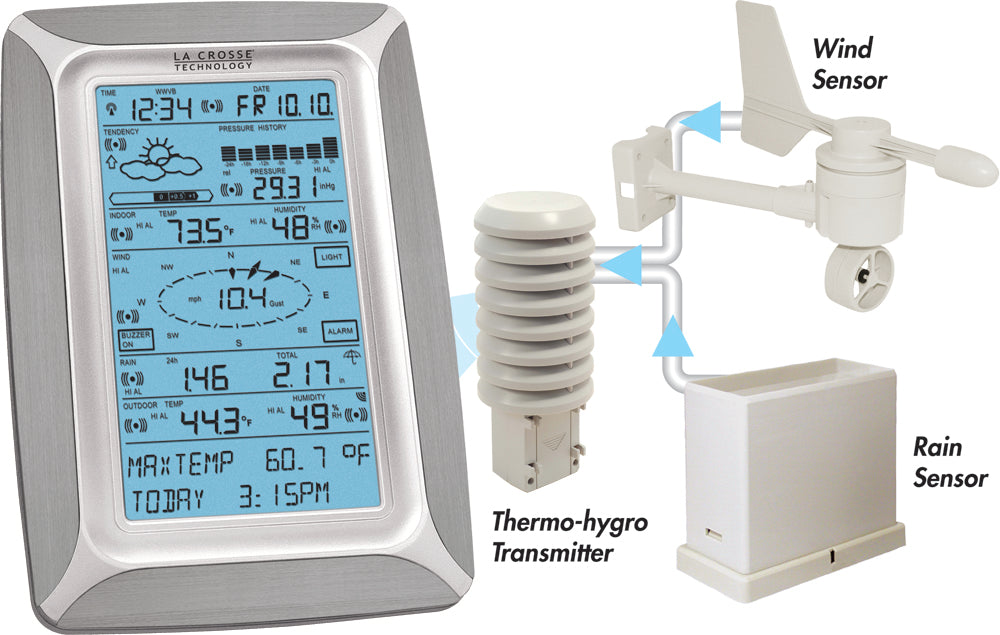

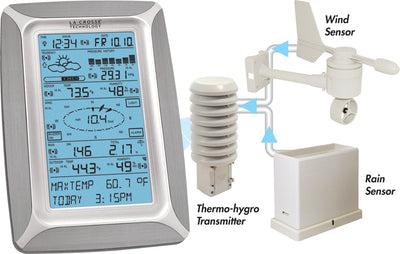

Included TX13U Wireless Outdoor Temperature/Humidity Sensor

  • Outdoor Temperature Range : -40°F to 139.8°F
  • Outdoor Humidity Range: 10% to 99%
  • Transmission Range: Up to 330 Feet
  • Transmission Frequency: 433.92 MHz
Included TX11U Rain Sensor:
  • Rain Volume Display: .0 to 39.4 in (1 hr, 24 hrs.) 0 to 98.4 in (last week, last month) 0 to 393.7 in (total volume)
Included TX12U Wind Sensor:
  • Wind Speed: 0 to 111.8 mph or 1 to 50

Power Requirements:

  • Display: AC power adaptor included; Optional 3 "AA" Alkaline battery backup (not included)
  • TX13U Sensor: 2 "C" Alkaline Batteries


  • Display: 5.60" L x 1.70" W x 7.30" H
  • TX13U Sensor: 2.80" L x 2.50" W x 5.50" H
  • TX11U Sensor: 5.51" L x 2.76" W x 5.39" H
  • TX12U Sensor: 11.46" L x 2.36" W x 7.76" H



La Crosse Technology, Ltd. provides, to the original purchaser, a 1-year limited time warranty on this product, relating to manufacturing defects in materials & workmanship.  In accordance with the Song-Beverly Act, in the state of California, the warranty on this item becomes effective on the date of delivery.  The item will be either repaired or replaced at La Crosse Technology's discretion.
