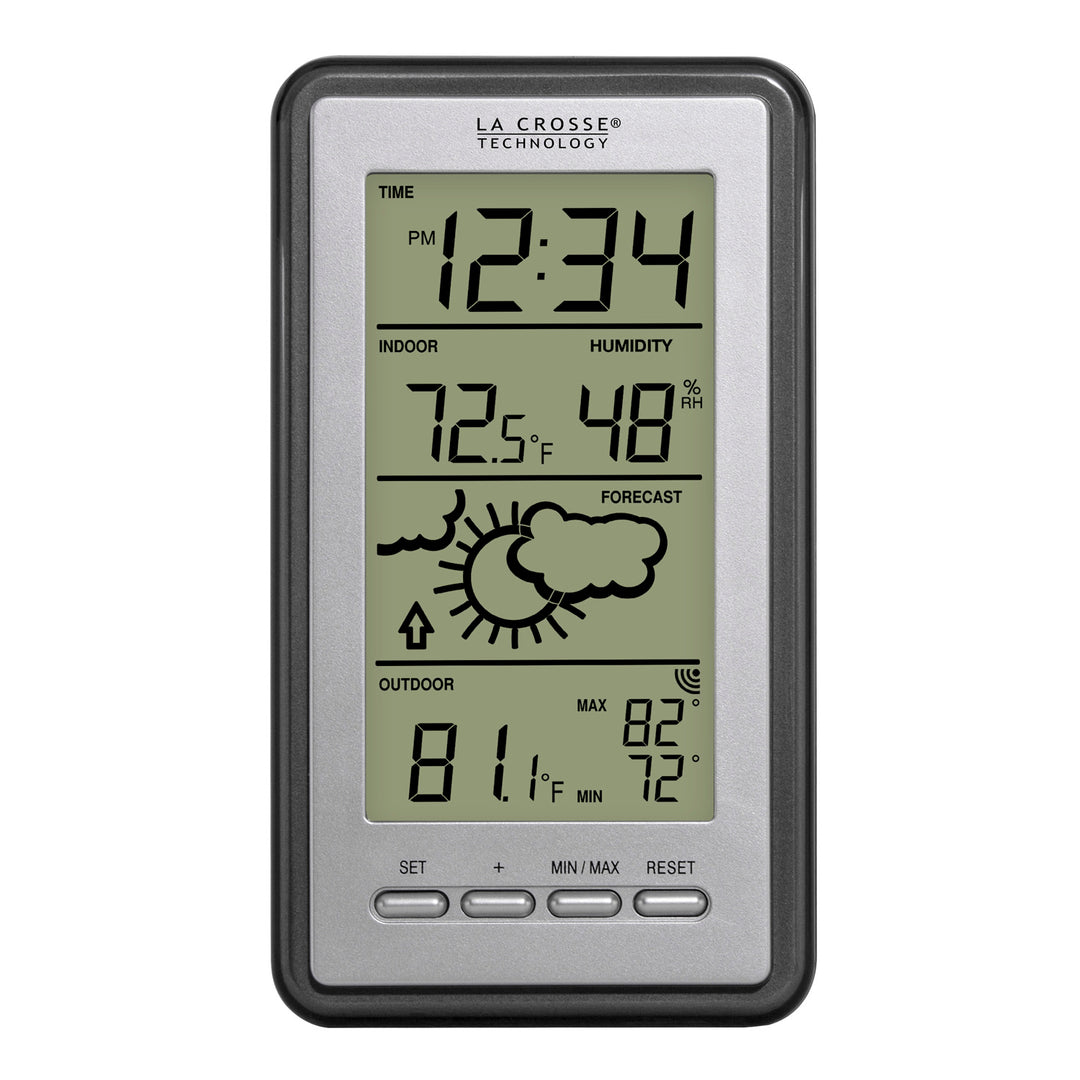

ws-9230u-it headon

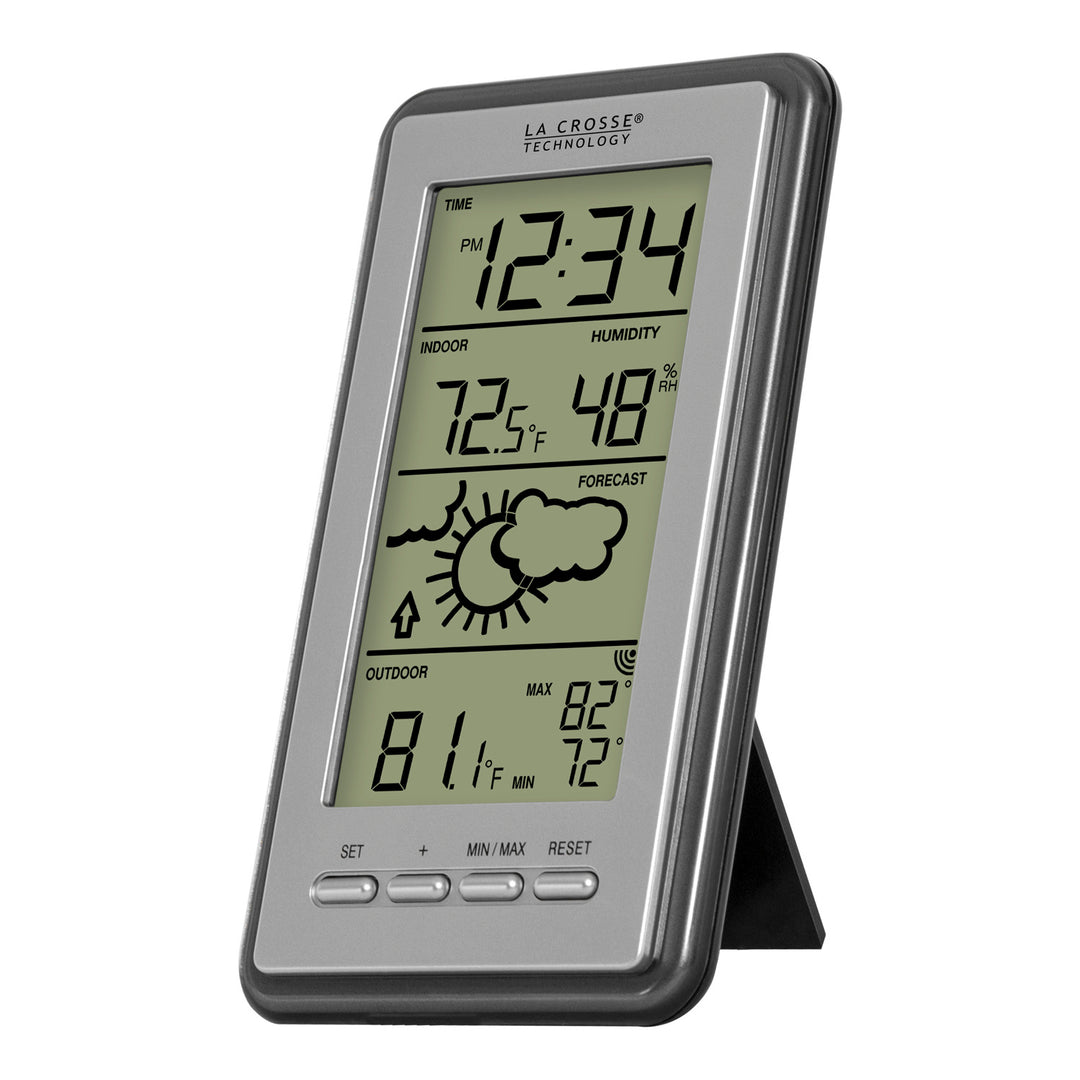

ws-9230u-it left

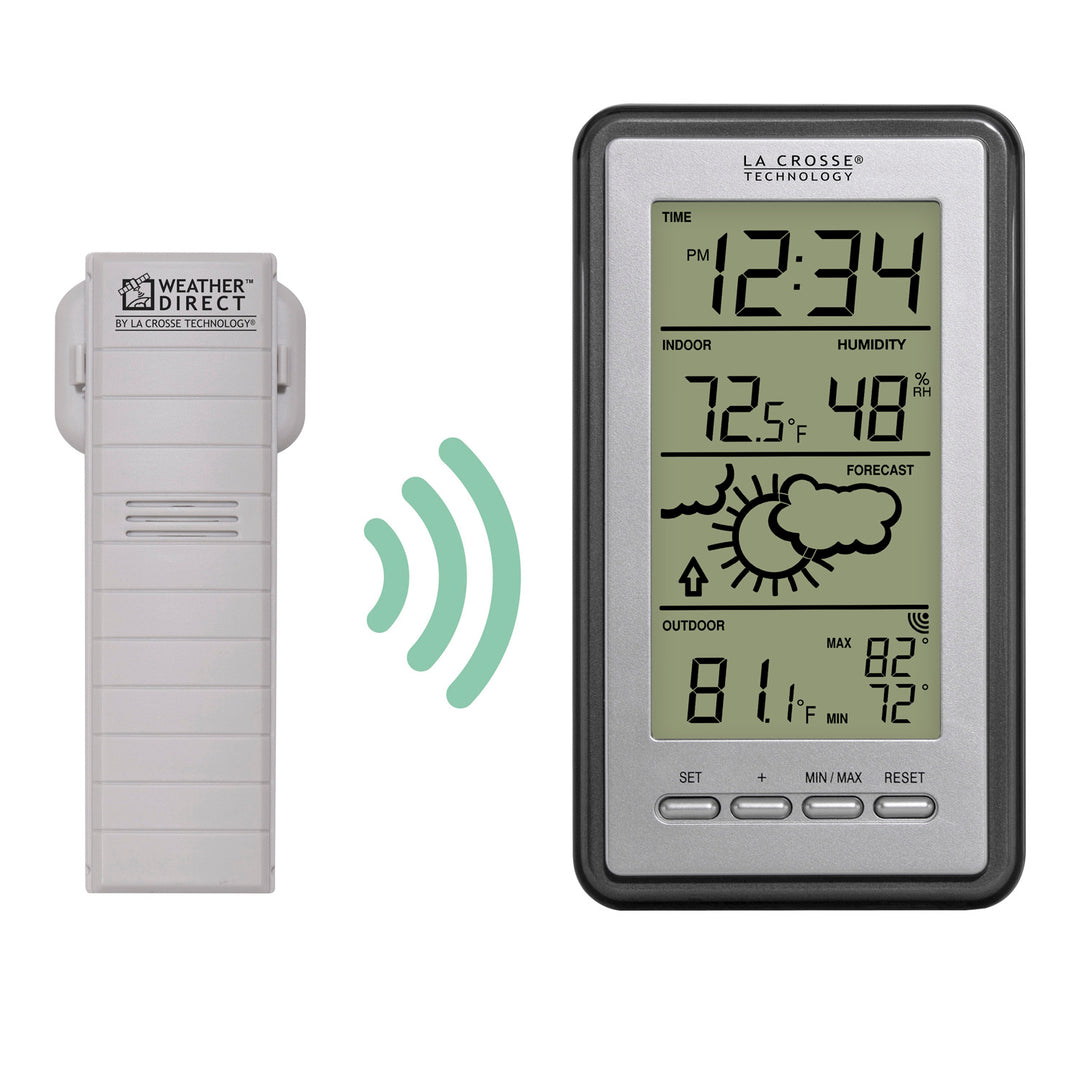

ws-9230u-it transmission
ws-9230u-it lifestyle

WS-9230U-IT Forecast Station with Indoor and Outdoor Temperature and MIN/MAX Records

SKU: WS-9230U-IT


WS-9230U-IT Forecast Station with Indoor and Outdoor Temperature and MIN/MAX Records

Already own this product?

Browse the tabs below for compatible parts, manuals or support.


  • Manual set time
  • Indoor Temp/Humidity
  • 3 Forecast icons (Sunny, Clouds, Rain)
  • Forecast Trend Arrows
  • Outdoor Temperature
  • Indoor/Outdoor MIN/MAX Temps




  • Indoor temperature range: 14.2°F to 139.8 °F
  • Indoor humidity range: 1%RH to 99% RH

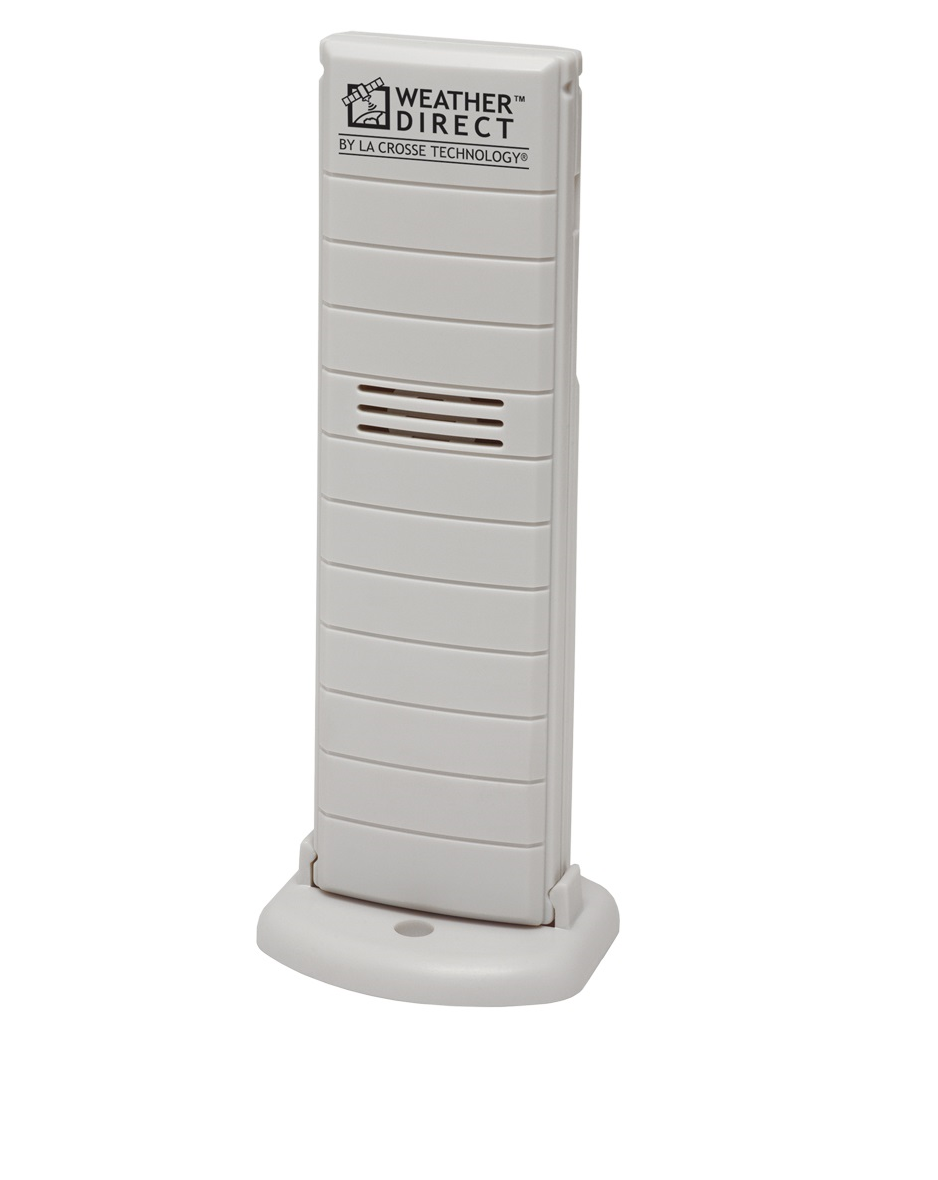

Included TX50U-IT Wireless Outdoor Temperature Sensor

  • Outdoor temperature range: -39.8°F to +139.8°F
  • Transmission range: Up to 262 feet
  • Transmission frequency: 915 MHz

Power Requirements:

  • Display: 2 "AAA" Alkaline batteries
  • Sensor: 2 "AA" Alkaline batteries


  • Display: 3.30" L x 0.90" W x 5.86" H
  • Sensor: 1.50" L x 0.83" W x 5.00" H



La Crosse Technology, Ltd. provides, to the original purchaser, a 1-year limited time warranty on this product, relating to manufacturing defects in materials & workmanship.  In accordance with the Song-Beverly Act, in the state of California, the warranty on this item becomes effective on the date of delivery.  The item will be either repaired or replaced at La Crosse Technology's discretion.

Click Here for full warranty details

Use the registration form below to register ownership of your product only.  If you have a question about use of the unit, please click on the support tab next to this one to see available support material or submit a ticket.


Welcome to Tech Talk, a video series designed to help you find the information you need to know quickly and conveniently. Use the red play-head under the video to move to the specific time listed below.

 0:26 - Introduction

 0:57 - Step 1) Insert 2 "AA" batteries into the outdoor sensor

 1:09 - Step 2) Insert 2 "AAA" batteries into the forecast station

 1:18 - Step 3) Check the sensor's connection & wait at least 15 minutes for it to sync with the station

 1:37 - Step 4) Configure your basic settings (Time, Date...ect)

 2:45 - Step 5) Mount the outdoor sensor

 3:34 - Minimum & maximum temperature readings

 4:35 - Help Us, Help You
