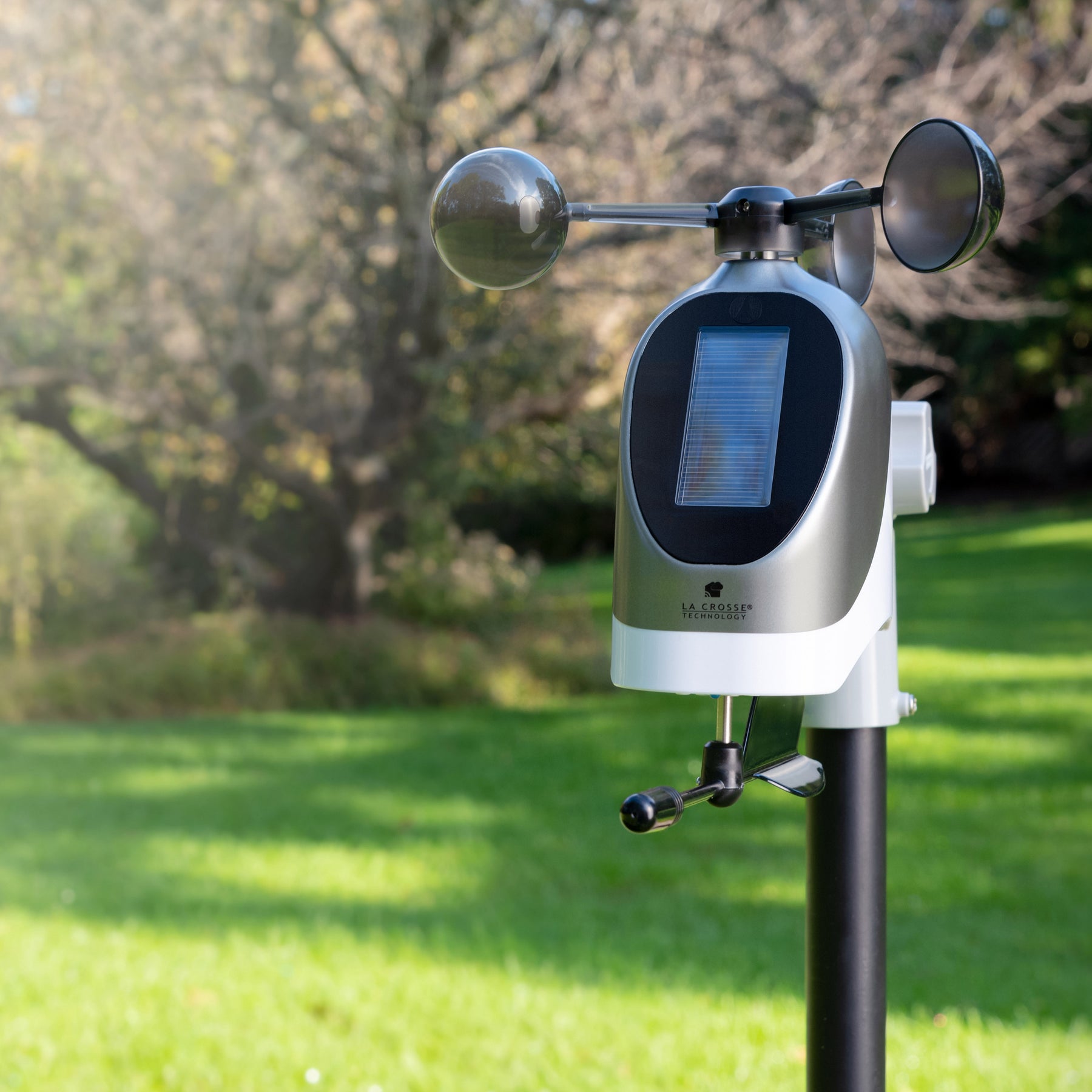

LTV-WSDTH04So Head On

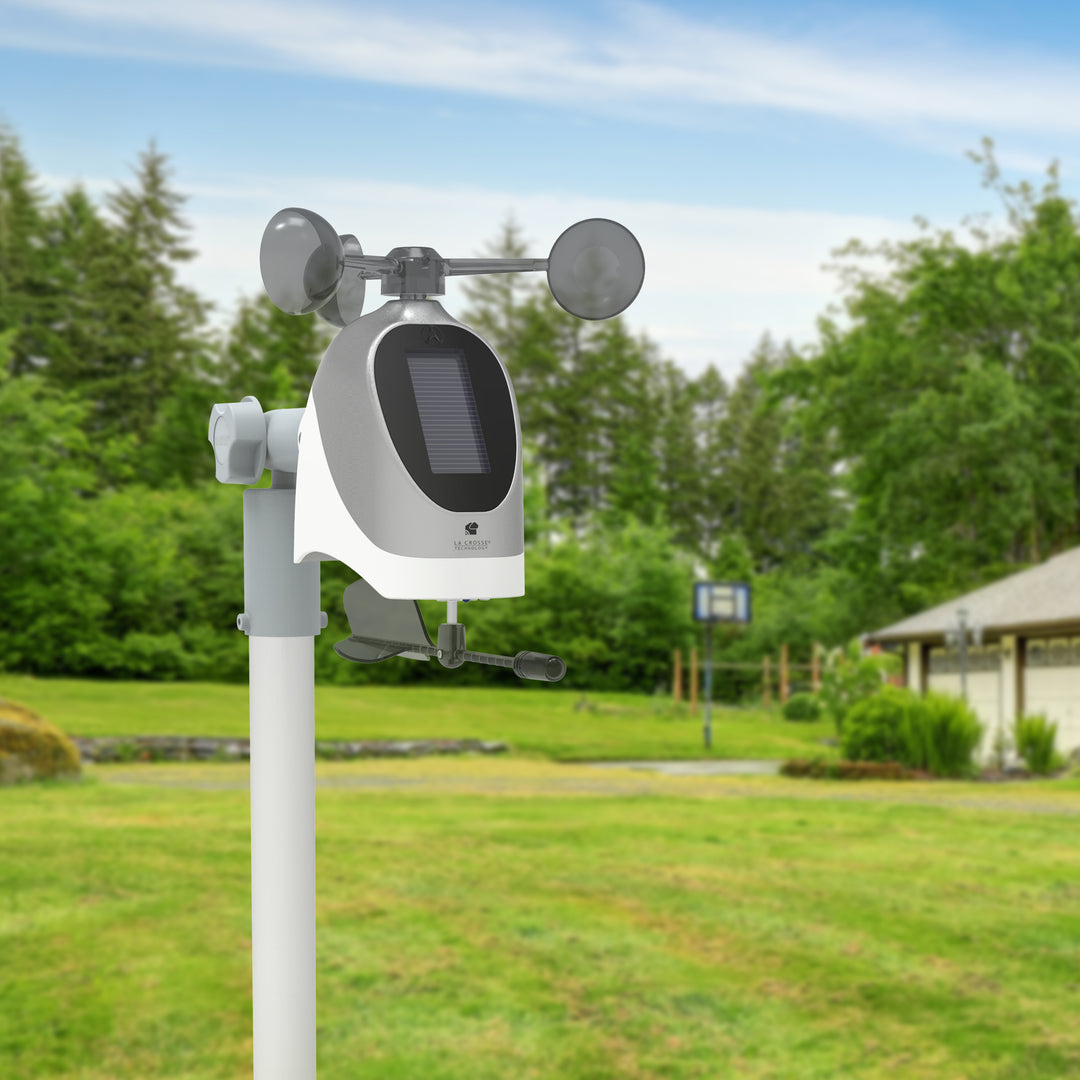

LTV-WSDTH04So Life Style 1
LTV-WSDTH04So Life Style 2

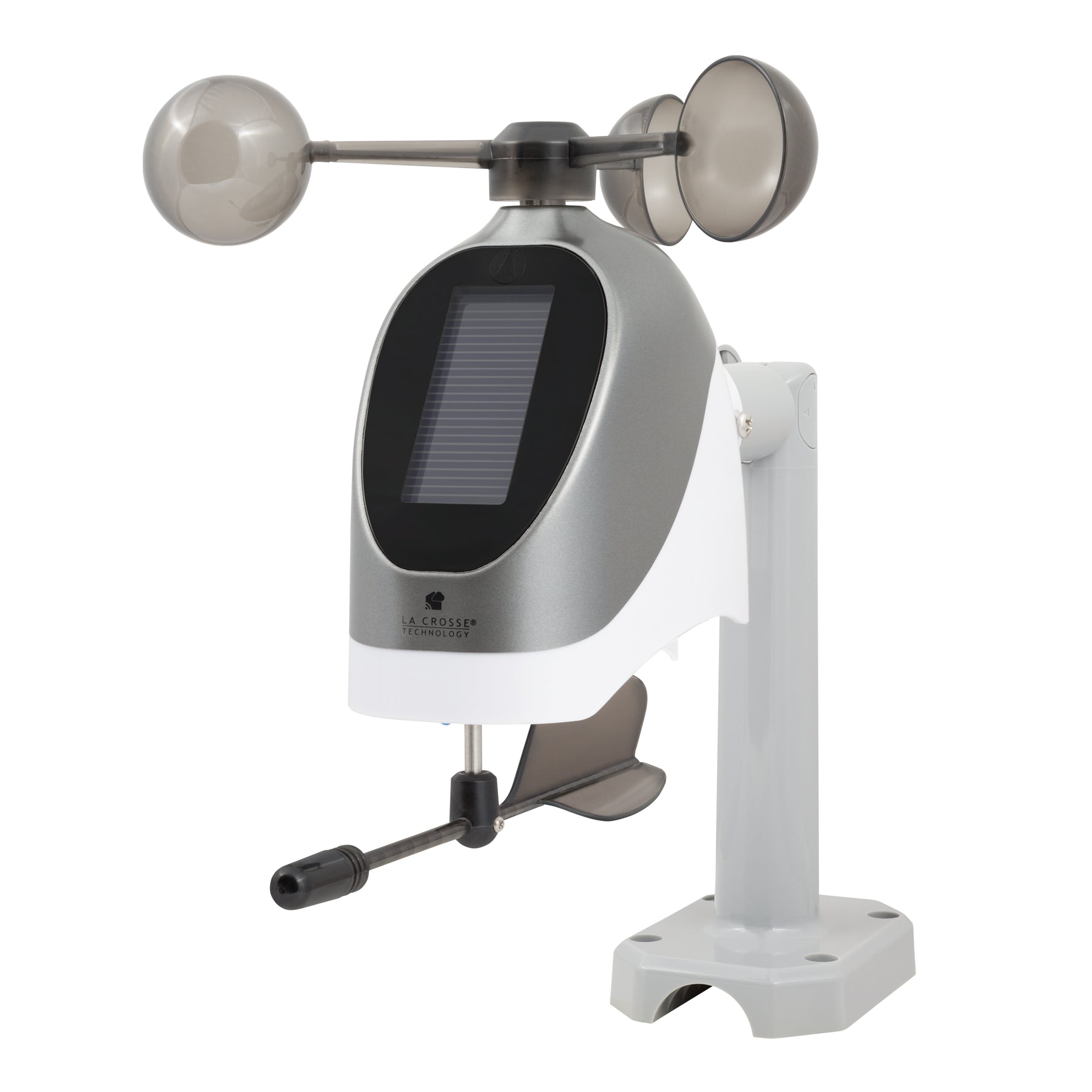

LTV-WSDTH04So Breeze Pro Sensor

SKU: ltv-wsdth04so

Regular price
$75.95
/

Is this sensor compatible with your system?

Click here to confirm sensor compatibility.

Add-on Sensors are compatible across most La Crosse View systems.  Check the compatibility chart link above to confirm.  Note: Not every display will have enough fields on the display itself to show all sensor data, but, when connected to Wi-Fi, the data is passed through the display and, with the La Crosse View App, the system makes your smart device your display wherever you are.

Already own this product?
Browse the tabs below for compatible parts, manuals or support.

Features

  • Oriented for Southern Hemisphere
  • Large Wind Speed Cups
  • Energy Efficient Solar Panel
  • Sleek Wind Direction Vane
  • Temperature Probe with Sun Shield
  • Over 400ft Transmission Range
  • Syncs with Select Indoor Displays
  • Versatile Mounting Bracket
  • Wind Speed
  • Wind Direction
  • Outdoor Temperature
  • Outdoor Humidity

Specs

Specifications:

  • Wind Speed Range: 0 to 111 mph (0 to 178 kMh)
  • Degrees of Direction: 360° with 16 Cardinal Directions
  • Outdoor Temperature Range: -40°F to 140°F (-40°C to 60°C)*
  • Outdoor Humidity Range: 10 to 99%RH
  • Transmission Range: 400 Feet (121.92 Meters)
  • Update Interval: Every 31 Seconds

*Please Note: The Breeze Pro Sensor will operate accurately at temperatures down to -40°C. The solar panel needs to be exposed to maximum sunlight and clear of snow to maintain the internal super capacitor charge for severe cold weather operation. The transmission interval may be automatically reduced during low sunlight and extreme cold to extend operation time.

Power requirements:

  • 3 "AA" Batteries

Dimensions:

  • 6.21" L x 12.28" W x 9.87 H (with bracket) For custom mounting of LTV-WSDTH04So Sensor use 1” Electric Metallic Tube (EMT) Conduit
